Download and install APP
Scan the code to install
Open the app or browser and scan the QR code below to download and install the [UBOX] APP.
App Market Installation
Android phone Search [UBOX] in the app store
Apple phone Search [UBOX] in App Store
user registration login
Register with your email/mobile phone number and check the box”I have read and agree to the User Agreement and Privacy Policy” when registering. As shown in the figure.
Add camera
Add 4G camera
- Insert the traffic card into the camera (if a traffic card is included in the factory, you can ignore this step).
- Power on the camera and wait for the device to enter the configuration state, enter the configuration state indicator shows “blue light is always on”.

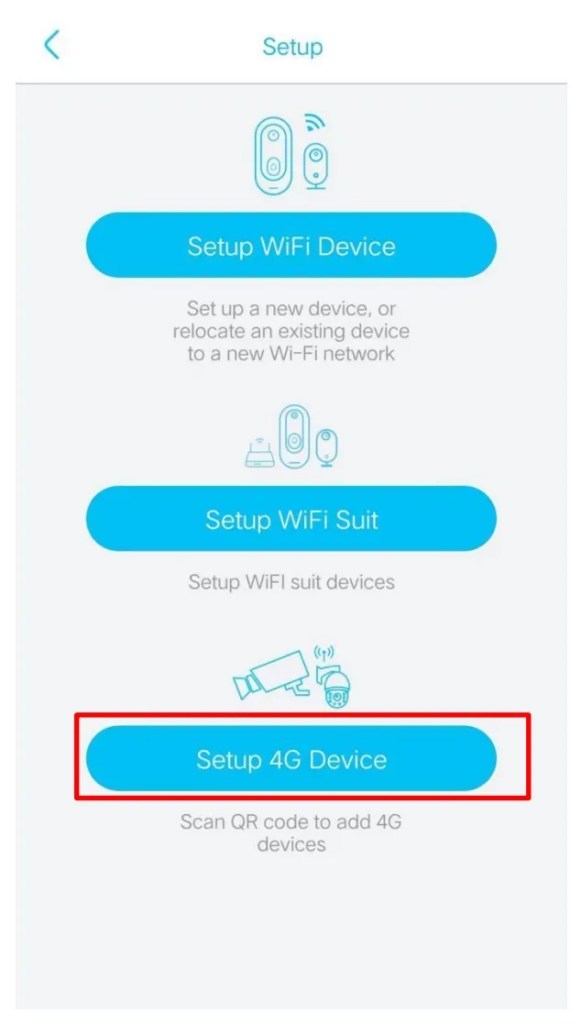

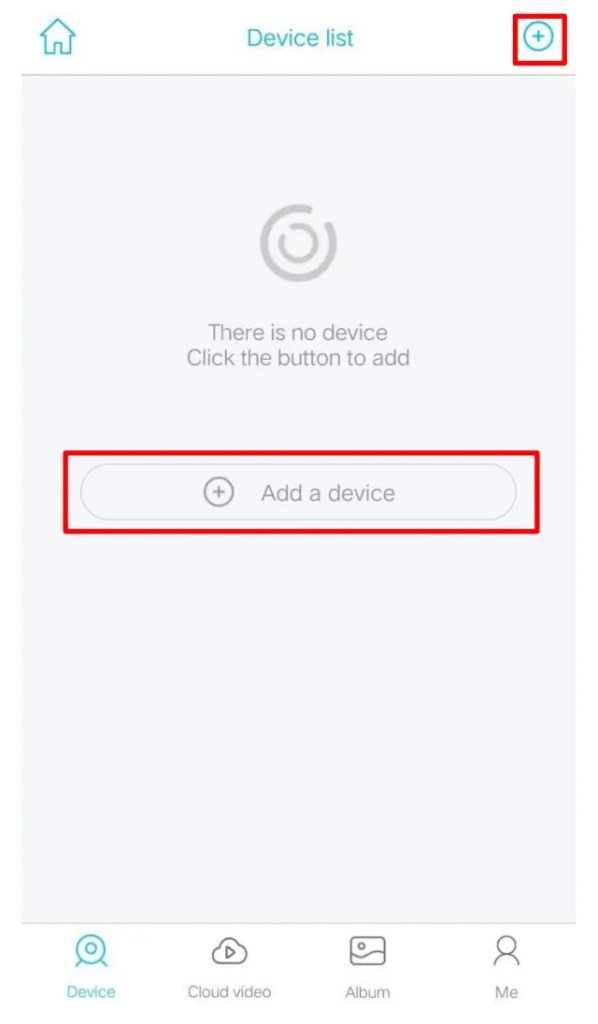

- On the main page of UBOX App, click “Add Smart Device” or the “+” sign in the upper right corner to enter the “Install Device” interface. Click “Install 4G devices” and follow the instructions until the installation is completed (As shown in the figure).
Add wifi camera
Scan code to add device
- Turn on the camera power, wait for the camera to issue a “configuration status” voice prompts, while the indicator is “blue flashing” state.

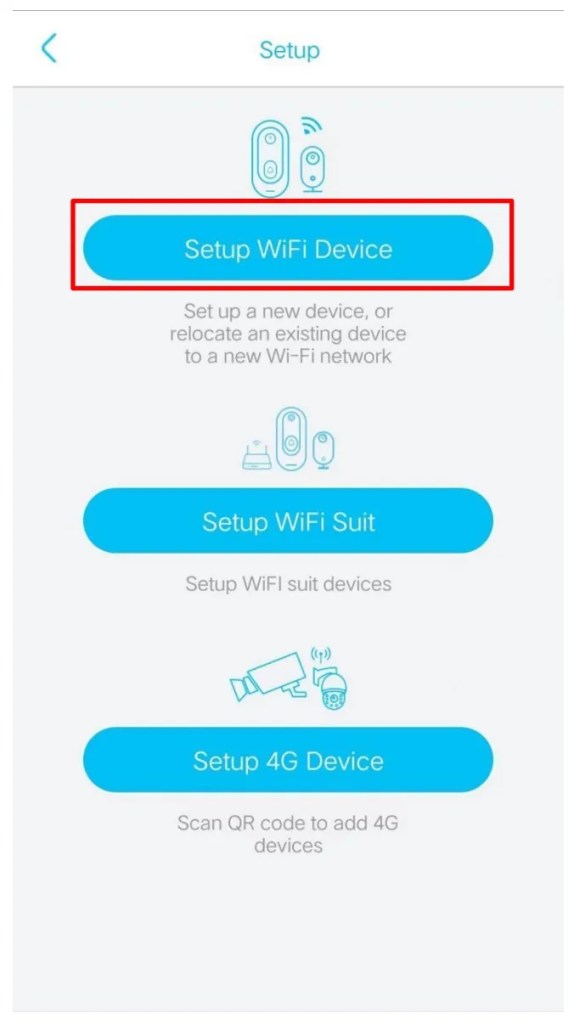

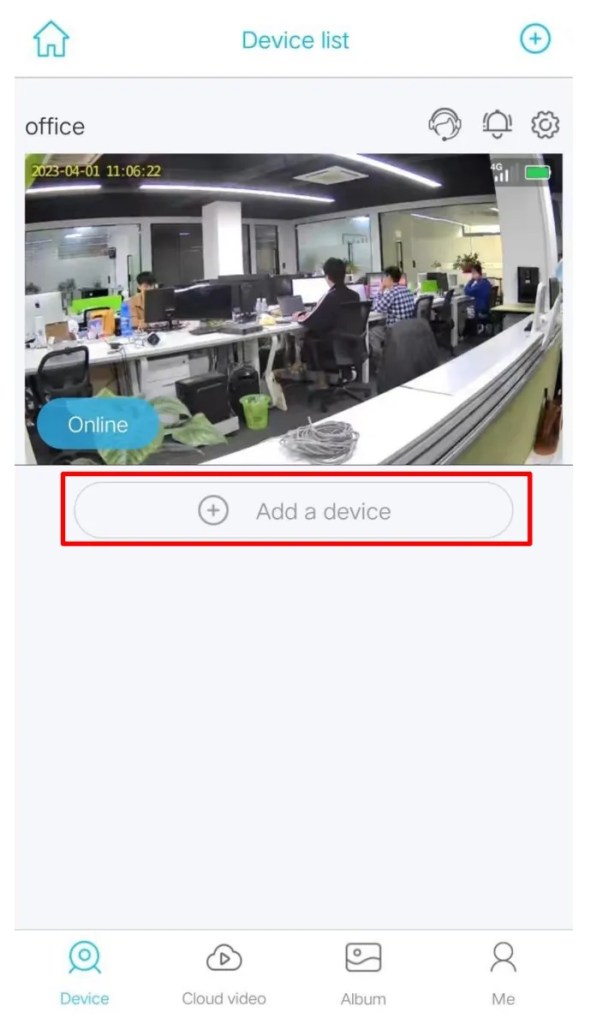

- Open the [UBOX] App, click Add Smart Device, enter the Install Device screen and click Install WiFi Device, follow the prompts until you finish adding (As shown in the figure).
- Click the Play button in the device list to watch the video.
Instructions for using the equipment
Instructions for using the main page

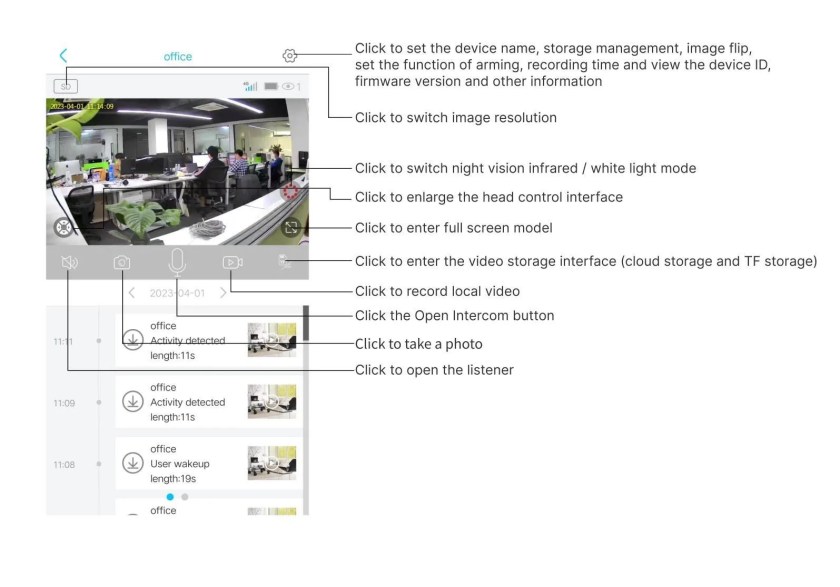

Instructions for using the preview image interface
Video Playback and Download
Cloud Video Playback and Download
- Click the cloud video on the main page, then click the calendar icon in the upper right corner, select the date you want to play back the video and then click OK to enter the video playback page, click the time period of the video to play back (As shown in the figure)
- Click the selection button in the upper left corner, check the video you need to download, and then click download (video files can be viewed in the APP album and mobile video) as shown in the figure.
TF card video playback and download
- After entering the preview interface, click the “Cloud/TF” button at the bottom right corner of the image, switch to the TF card video, and click the video time period to play back (As shown in the figure)
- Click the download button on the left of the video file to download the video, after the download is complete, the video file will be automatically saved in the APP album and in the cell phone video (As shown in the figure)
Cautions
- （1）The device uses battery power, the battery time will be affected by the device wake-up time and the number of wake-up calls, so the human body sensor alarm detection function, used in a crowded environment, it is recommended to close or set the device to low sensitivity to reduce the number of device wake-up calls to extend the battery time.
- In the installation process, please ensure that the installation environment network is normal, especially outdoor or outside the door installation, if the WiFi signal is too weak, there may be caused by the image is not normal.
- This device is a low-power intelligent product, which can support APP remote wake-up, PIR body detection wake-up, key wake-up, and will enter the hibernation state after working for a short time after each wake-up. The working time of the device can be set in the APP menu.
- Because the system push message from Google cannot be received in mainland China, you need to turn on the self-start function of the app in your phone.
- This device provides one month free cloud storage service, after the trial period expires, if you want to continue to use the value-added services, please purchase in the APP.
- After the WiFi device is powered on, you can hear the voice prompt of “enter configuration status”, if there is no such prompt, please reset the device, after the reset, you can add the device by hearing the voice prompt.
- After the 4G device is powered on, observe the indicator light and add the device when the blue light is always on.
- WiFi version indicator status display: blue light blinking (configuration status), red light long (WiFi connection failure), blue light long (device connected successfully/working status), red and blue lights on at the same time (device is connecting to WiFi), red and blue lights off (power off or standby status).
- 4G version of the indicator status display: red light is long (network connection failure), blue light is long. (network connection success / work status)
